Stainless steel angle 1/16
JIANGSU STEEL GROUP Inquiries :
Price per ton: 1900$-2000$/ton
Quick Detail:

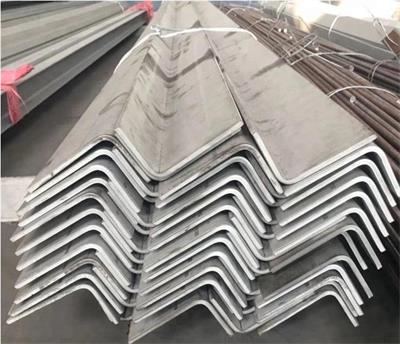

Commodity: Stainless steel angle 1/16
Grade:304/316
Type:Bending, Hot Rolled, welding, equal unequal
Certification: SGS BV IQI, TUV,ISO, ETC
Surface: Pickled or Sand blasting
Thickness: 1/16 inch
Surface: 2B\NO.1\BA
Width: as requested
Length: 6000mm or as customer's requirement
Standard: ASTM A276
Thickness Tolerance:±0.01mm
Delievery Time: According to your size and quantity or as require
Payment term:T/T, L/C, BL copy
Grade for Stainless steel angle 1/16
Chemical Composition | 201 | 904l | 304 | 316l | 430 |
C | ≤0.15 | ≤0.02 | ≤0.08 | ≤0.035 | ≤0.12 |
Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 |
Mn | 5.5-7.5 | ≤2.00 | ≤2.00 | ≤2.00 | ≤1.00 |
S | ≤0.06 | ≤0.035 | ≤0.045 | ≤0.045 | ≤0.04 |
P | ≤0.03 | ≤0.045 | ≤0.03 | ≤0.03 | ≤0.03 |
Cr | 13-15 | 19-23 | 18-20 | 16-18 | 16-18 |
Ni | 0.7-1.1 | 23-28 | 8-10.5 | 10-14 |
|
Mo |
|
|
| 2.0-3.0 |
|
Mechanical Property | ||||
Material Item | 201 | 202 | 304 | 316 |
Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 |
Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 |
Extension | ≥30% | ≥30% | ≥35% | ≥35% |
Hardness(HV) | <105<> | <100<> | <90<> | <90<> |
Application
1) Used for various architectual and beams, bridges, transmission towers, etc.
2) For engineering construction structures
3) For steel structure engineeri and warehouse shelves
4) For automotive parts manufacturing
