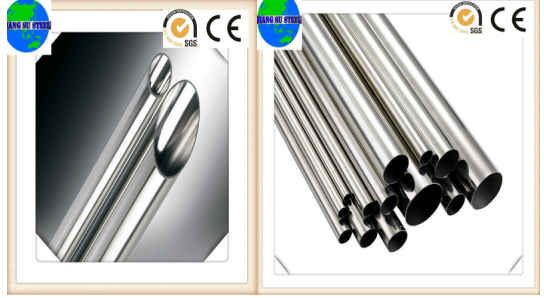

201 stainless steel round pipe

JIANGSU STEEL GROUP Inquiries :

Specifications

201 stainless steel pipe:
1.Grade: 201,202,301,304,316L,etc
2.OD: 9.53-254mm,TK:0.3-3.0mm

201 stainless steel pipe :

From the nature, To the excellence.

Name	Stainless Steel Welded Tube &Pipe
Items	Square tubes, round tubes, oval pipes, special shaped pipes, empaistic pipes, fittings
Standard	ASTM A554, A249, A269 and A270
Material Grade	201: Ni 0.8%~1%
	202: Ni 3.5%~4.5%
	304: Ni 8%, Cr 18%
	316: Ni 10%, Cr 18%
	316L: Ni10%~14%
	430: Cr16%~18%
Outer Diameter	9.53mm--159mm
Thickness	0.3mm - 3.0mm
Length	6m or as customers' request
Tolerance	a) Outer Diameter: +/- 0.2mm
	b) Thickness: +/- 0.02mm
	c) Length: +/- 5mm
Surface	180G, 240G, 320G Satin / Hairline 400G, 600G Mirror finish
Application	handrail,railing, staircase, weldmesh screen,door,window, balcony,fence,bench,furniture,etc
Test	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Chemical Composition of Material	Material Composition	201	202	304	316L	430
	C	≤0.15	≤0.15	≤0.08	≤0.035	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	13-15	14-17	18-20	16-18	16-18
	Ni	0.7-1.1	3.5-4.5	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<105<>	<100<>	<90<>	<90<>

Definition of stainless steel(Adopted form Wikipedia)

In metallurgy, stainless steel, also known as inox steel or inox from French "inoxydable", is defined as a steelalloy with a minimum of 10.5% to 11% chromium content by mass.

Stainless steel does not readily corrode, rust or stain with water as ordinary steel does, but despite the name it is not fully stain-proof, most notably under low oxygen, high salinity, or poor circulation environments. It is also called corrosion-resistant steel or CRES when the alloy type and grade are not detailed, particularly in the aviation industry. There are different grades and surface finishes of stainless steel to suit the environment the alloy must endure. Stainless steel is used where both the properties of steel and resistance to corrosion are required.

Packaging & Delivery

Packaging Details: Each tube in a plastic bag, then several tubes to a seaworthy woven bag with 50kg/bundle or 400kg-500kg/bundle. Or as customer's requirement.

Delivery Detail: 15 days normally

Our Advantage

(1): High quality stainless steel tube with reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
We are professional manufacturer of stainless steel products, including stainless steel decorative pipes,industrial stainless welded pipes, special-shaped pipes, stainless steel

sheet and etc. Main materials are: 304, 201,202,316,316L,430 and so on.

Best price can be promised, because we are focus on building long term mutual business relationship with clients. Any question please tell us, prompt reply will be sent along with professional suggestion.
