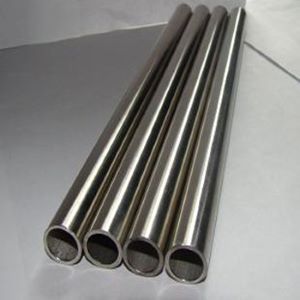

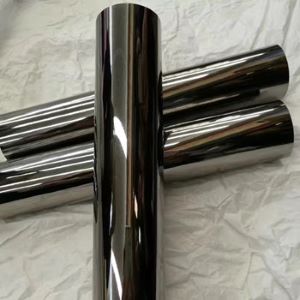

Stainless Steel Welded Pipe
JIANGSU STEEL GROUP Inquiries :
1. Commodity: Stainless steel welded pipe
2. Grade:201/304/304L/313/316L/310/312/410/420/430/2205/2507 etc
3. Certification:ISO
4. Surface: satin/hairline/400#/600-1000#/mirror/HL brushed/Brushed Mirror,etc.
5. Thickness:0.5-8mm
7. OD:19-1000mm
8. Length: 1-6m
9. Standard:JIS,AISI,ASTM,GB,DIN and EN
10.Delievery Time:According to your size and quantity or as require
11.Payment term:TT/ LC

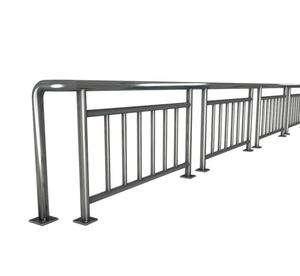

12. Application：Industry,building materials,hardware tools,machinery,construction.
Grade for Stainless steel welded pipe
Chemical Composition | 304 | 304L | 316 | 316L |
C | ≤0.07 | ≤0.030 | ≤0.08 | ≤0.030 |
Si | ≤0.75 | ≤1.00 | ≤1.00 | ≤1.00 |
Mn | ≤2.00 | ≤2.00 | ≤2.00 | ≤2.00 |
S | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 |
P | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.045 |
Cr | 17.5-19.5 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 |
Ni | 8.0-10.5 | 9.0-12.0 | 10.0-14.0 | 10.0-14.0 |
Mo |
|
| 2.0-3.0 | 2.0-3.0 |
Mechanical Property | ||||
Material Item | 304 | 304L | 316 | 316L |
Tensile Strength | ≥520 | ≥480 | ≥520 | ≥480 |
Yield Strength | ≥205 | ≥175 | ≥205 | ≥175 |
Extension | ≥40% | ≥40% | ≥40% | ≥40% |
Hardness(HV) | <200 | <200 | <200 | <200 |

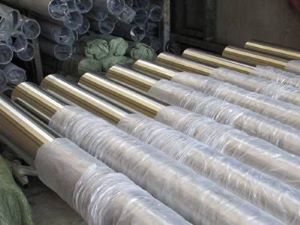

Package
Usage:
